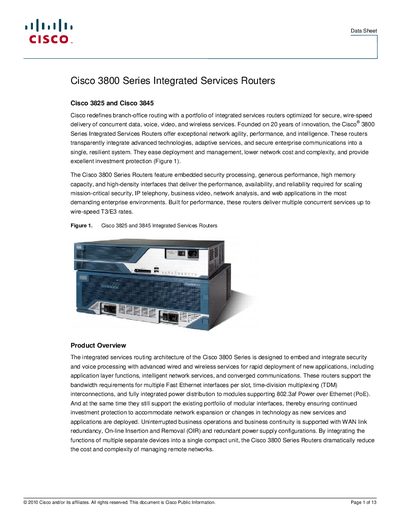

The Cisco 3800 Series Integrated Services Routers, including the Cisco 3825 and Cisco 3845, are optimized for secure, wire-speed delivery of concurrent data, voice, video, and wireless services, redefining branch-office routing. Based on 20 years of innovation, these routers offer exceptional network agility, performance, and intelligence.
The Cisco 3800 Series Integrated Services Routers combine routing, security, voice, video and wireless functions in a single chassis. They support high‑density interfaces, Power over Ethernet, and modular network modules for flexible expansion.
Key capabilities include embedded hardware encryption, firewall, IPSec, SSL VPN, extensive voice‑gateway interfaces, integrated wireless access points, 3G WWAN backup, and support for up to 24 T1/E1 trunks and 88 FXS ports. Redundant power options and hot‑swap modules provide high availability for branch‑office deployments.
| Maximum T1/E1 trunks | 24 |
|---|---|
| Maximum supported phones | 730 |
The routers provide a firewall, IPSec, SSL VPN, intrusion‑prevention system and hardware encryption acceleration.
It includes an integrated WLAN access point, 802.3af PoE support, 3G WWAN HWICs and Wi‑Fi hotspot services.
