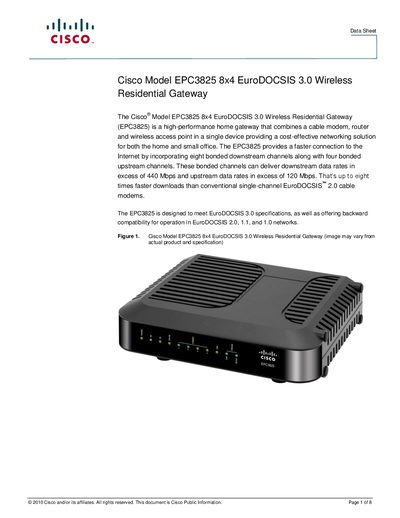

Cisco EPC3825 8x4 EuroDOCSIS 3.0 Wireless Residential Gateway is a high-performance home gateway that combines a cable modem, router and wireless access point in a single device providing a cost-effective networking solution for both the home and small office.
The Cisco EPC3825 residential gateway integrates a cable modem, router and wireless access point in a single unit, targeting homes and small offices. It supports EuroDOCSIS 3.0 with eight bonded downstream and four bonded upstream channels, delivering up to 440 Mbps downstream and 120 Mbps upstream.
Key features include four Gigabit Ethernet ports, a 2x2 802.11n Wi‑Fi radio with up to four SSIDs, WPS, parental controls, and a comprehensive security suite (SPI firewall, WPA2, WPA, WEP). The device is powered by a 15 VDC supply (230 VAC input) and measures 14.5 × 18.6 × 5 cm.
| Downstream Channels | 8 bonded |
|---|---|
| Upstream Channels | 4 bonded |
| Maximum Downstream Data Rate | 440 Mbps+ |
| Maximum Upstream Data Rate | 120 Mbps+ |
| Ethernet Ports | 4 × 1000/100/10BASE‑T |
| Operating Temperature | -0 °C to 40 °C |
| Input Voltage | 15 VDC |
The device uses a 230 VAC / 50‑60 Hz input with a 15 VDC / 1.5 A wall‑mount linear‑switching power supply.
