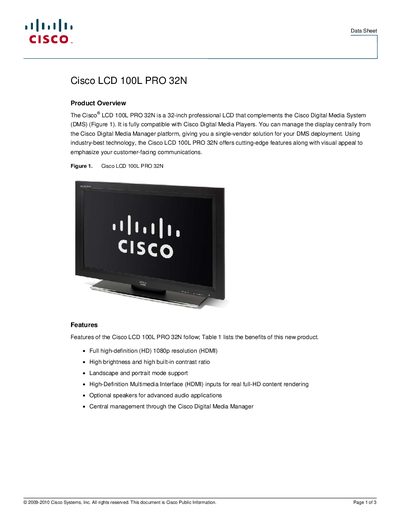

This data sheet provides an overview of the Cisco LCD 100L PRO 32N's features and capabilities, including full high-definition (HD) 1080p resolution, high brightness and high built-in contrast ratio, landscape and portrait mode support, High-Definition Multimedia Interface (HDMI) inputs for real full-HD content rendering, optional speakers for advanced audio applications, and central management through the Cisco Digital Media Manager.
The Cisco LCD 100L PRO 32N is a 32‑inch professional LCD designed for Cisco Digital Media System deployments. It offers full HD 1080p resolution, high brightness, and optional speakers, and can be centrally managed through Cisco Digital Media Manager.
The sheet lists detailed product specifications, system requirements, ordering part numbers, and service and support options, including Cisco SMARTnet and TAC assistance.
| Diagonal size | 32 inches |
|---|---|
| Native resolution | 1366 x 768 (WXGA), 1920 x 1080 (HDMI) |
| Resolutions supported | 1080p, 1080i, 720p |
| Brightness (typical) | 500 cd/m2 |
| Contrast ratio (typical) | 3000:1 |
| Viewing angle | 178/178 degrees (H/V) |
| Response time | 8 ms |
| Power consumption (maximum) | ~160 W |
| Inputs | HDMI, VGA, DVI (plus composite, component, s‑video) |
| Built‑in TV tuner | No |
It supports HDMI, VGA, and DVI inputs, and also accepts composite, component, and S‑video signals.
The display’s typical brightness is 500 cd/m2.
No, the Cisco LCD 100L PRO 32N does not include a built‑in TV tuner.
The unit measures 31.61 × 19.41 × 3.93 inches (H × W × D).
