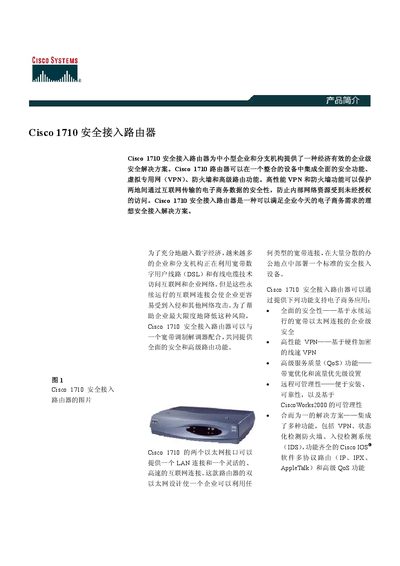

The Cisco 1710 Security Router manual describes its integrated security, VPN, firewall, QoS and hardware specifications for small‑business networks.
The Cisco 1710 Security Router provides an integrated solution for small‑to‑medium enterprises, combining hardware‑accelerated VPN, stateful firewall, advanced QoS and multi‑protocol routing in a single device. It supports dual Ethernet interfaces for LAN and WAN connections, VLANs, PPPoE, DHCP, NAT/PAT and a range of tunneling protocols (GRE, L2TP, L2F).\n\nManagement tools such as CiscoWorks2000, CiscoView and the Cisco Security Policy Manager enable remote configuration, monitoring and policy enforcement. The manual also lists physical dimensions, power requirements, environmental ratings and detailed hardware specifications. This manual is written in Chinese.
| Fast Ethernet ports | 2 × 10/100BaseTX RJ‑45 |
|---|---|
| 10BaseT Ethernet port | 1 × RJ‑45 |
| Console port | RJ‑45 and EIA/TIA‑232 (default 9600 bps) |
| Flash memory | 16 MB (expandable to 16 MB) |
| DRAM | 64 MB (32 MB default, one DIMM slot) |
| Dimensions | 11.2 in (W) × 3.1 in (H) × 8.7 in (L) |
| Power consumption | Maximum 20 W |
| Operating temperature | 0 °C to 40 °C (32 °F to 104 °F) |
The router has two Ethernet interfaces – one LAN port and one flexible high‑speed WAN port.
It accepts AC input voltage from 100 V to 240 V, 50‑60 Hz, with a rated current of 1 A.
