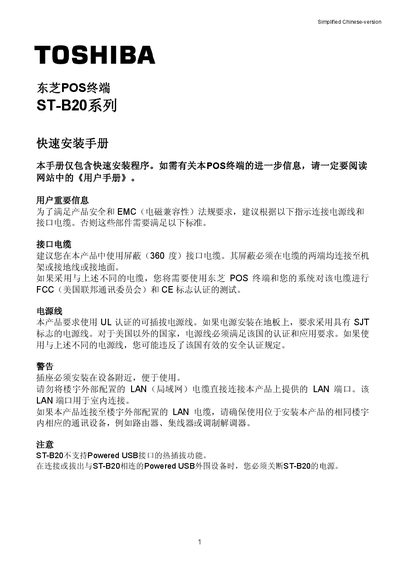

This manual describes the appearance, interfaces, buttons and LED indicators of Toshiba POS terminals ST-B20 series and provides a quick installation guide.
The guide offers a brief installation procedure for the Toshiba ST-B20 POS terminal, including safety and EMC compliance notes. It explains required power and interface cables, grounding, and warnings about external LAN connections.
It details the terminal's connectors, such as shielded 360° interface cables, UL‑certified detachable power cables, and various COM, USB, LAN, and VGA ports. Installation steps cover positioning the unit, providing at least 80 mm clearance on the right, front and rear sides, and securing the front panel with the supplied DSM‑3x12 screws. This manual is written in Chinese.
