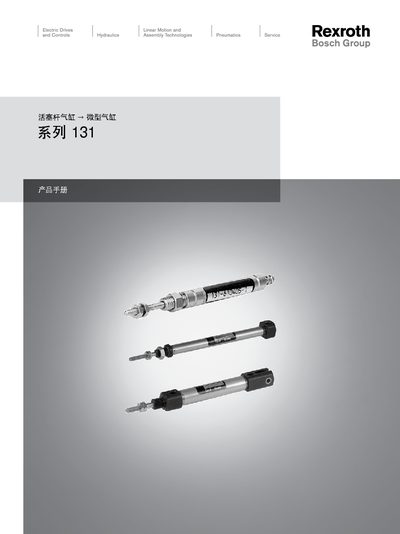

This manual introduces the features and characteristics of the Bosch Rexroth 131 series of miniature pneumatic cylinders. The series is available in single-acting and double-acting versions, with diameters ranging from 2.5 mm to 10 mm. All models feature elastic cushioning and are corrosion-resistant.
The guide describes the Bosch Rexroth 131 series piston‑rod micro cylinder, a compact pneumatic actuator designed for precise linear motion. It includes technical data, mounting dimensions, pressure ratings and safety notes for proper use.
Key specifications such as a maximum pressure of 6 bar, operating temperature range of –20 °C to +70 °C, IP 65 protection and a 210 mm stroke are listed, along with dimensional tables for bore sizes from 2.5 mm to 6 mm. Contact information for Bosch Rexroth support is provided at the end of the document.
| Maximum Pressure | 6 bar |
|---|---|
| Operating Temperature Range | -20°C / +70°C |
The cylinder is rated for a maximum pressure of 6 bar.
It can be used from –20 °C up to +70 °C.
