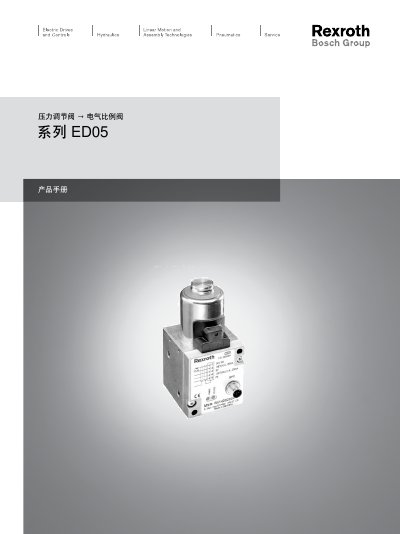

ED05 electric proportion valve product manual, introduces the characteristics, features, application range, installation size, order information, etc. of the product.
The document provides an overview of the ED05 series E/P pressure regulating valve, including its rated flow of 1000 l/min, operating voltage of DC 24 V, and IP65 protection. It lists the valve's main features, environmental limits, and required accessories such as connection blocks and cables.
Detailed sections cover the valve's electrical interface (M12 5‑pin connector), mounting options, flow curves, and technical notes on pressure dew point, oil content, and approved lubricants. Contact information for Bosch Rexroth offices worldwide is also included. This manual is written in Chinese.
| Rated flow (Qn) | 1000 l/min |
|---|---|
| Operating voltage | DC 24 V |
| Power consumption | max. 1.3 A |
| Weight | 0.95 kg |
| Operating temperature range | -0 °C to +70 °C |
| Medium | Compressed air |
| Maximum particle size | 50 µm |
| Maximum oil content in air | 1 mg/m³ |
The valve is rated for a flow of 1000 l/min.
It requires a DC supply of 24 V.
The valve weighs approximately 0.95 kg.
