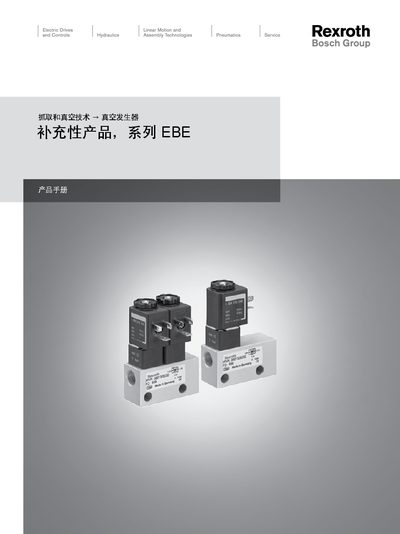

Product manual, introducing the features and characteristics of EBE series electronic controlled compact vacuum generators, including ambient temperature, minimum/maximum media temperature, working pressure range, media, particle size, oil content in compressed air, protection class, operating time, DC voltage tolerance, materials, technical notes, etc.
This manual provides technical parameters, operating conditions, connection dimensions, electrical requirements and environmental limits for the Bosch Rexroth EBE series vacuum generators with electronic control and compact construction. It includes performance curves, power consumption values and vacuum degree data for various model variants such as EBE‑ET‑07‑NC and EBE‑ET‑10‑NC.
The document also details material specifications, IP protection rating, and compatible electronic connectors, along with contact information for Bosch Rexroth offices worldwide. This manual is written in Chinese.
| Operating pressure range | 2 bar – 6 bar |
|---|---|
| IP protection rating | IP65 |
| Operating temperature range | +0 °C – +50 °C |
| Housing material | Aluminum, anodized |
The operating pressure range is 2 bar to 6 bar.
They are rated IP65.
