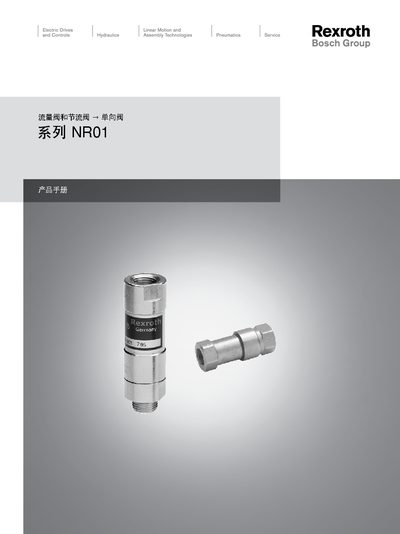

This document is the product manual for Bosch Rexroth pneumatic components, single-way valve series NR01, which mainly introduces the product structure characteristics, working pressure range, ambient temperature, medium, material, interface, rated flow and other information.
This guide provides technical data for the NR01 series valves, including flow rates, pressure and temperature limits, and performance curves. It also contains installation diagrams and reference figures for the various valve types.
Contact information for Bosch Rexroth, including phone numbers, fax, email and website, is listed at the end of the document for further assistance.
| Flow rate (Qn) | 40 - 3500 I/min |
|---|---|
| Pressure range | 0.2 bar – 10 bar |
| Temperature range | 10°C – 470°C |
| Maximum operating pressure | 6 bar (Ap = 1 bar) |
The NR01 valve operates with a flow range of 40 to 3500 I/min.
It supports pressures from 0.2 bar up to 10 bar, with a maximum operating pressure of 6 bar at an atmospheric pressure of 1 bar.
You can reach Bosch Rexroth via phone +49 511 2136-0, fax +49 511 2136-269, email [email protected] or visit www.boschrexroth.com/pneumatics.
