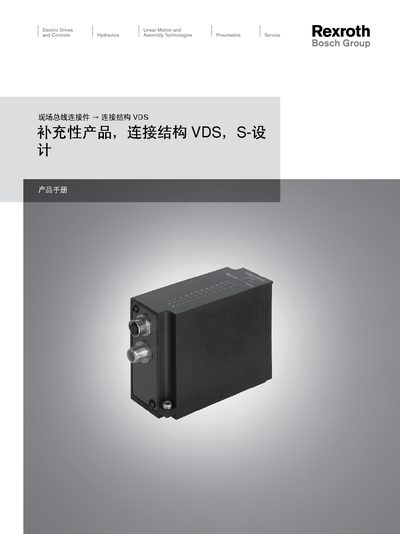

This document is about the Bosch Rexroth AG's field bus connector, connection structure VDS, S-design product manual. It details the features and characteristics of the product.
This manual provides an overview of the VDS fieldbus connector series offered by Bosch Rexroth. It describes the connector types, environmental limits, protection class and electrical characteristics.
The document also contains installation instructions, wiring diagrams, part numbers and contact information for Bosch Rexroth offices worldwide. All data reflect the version published on 07‑11‑2011. This manual is written in Chinese.
| Environmental temperature range | -15°C to +50°C |
|---|---|
| Protection class | IP65 |
| Operating voltage | 24 VDC |
| Current consumption | 0.05 A |
| Maximum coil current | 0.2 A |
| Maximum VDS cable length | 10 m |
| Shell material | Polyamide, stainless steel |
The connector operates at 24 VDC.
It has an IP65 protection rating.
The connector can be used from –15 °C up to +50 °C.
The maximum recommended cable length is 10 m.
