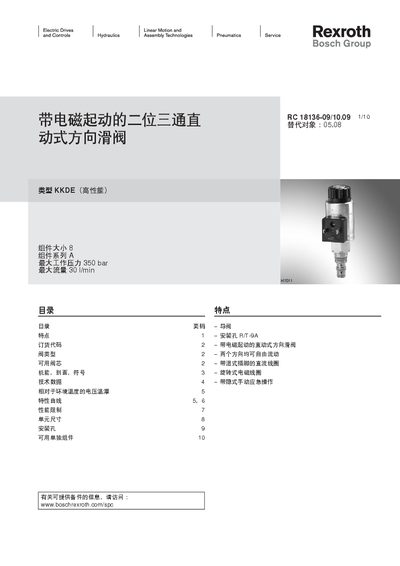

This document is the product manual of KKDE direct-acting solenoid directional slide valve. It introduces the product features, ordering code, valve types, available valve cores, function, profile, symbol, technical data, voltage drift relative to ambient temperature, characteristic curve, performance limitation, unit size, installation hole, available separate components and other information.
The KKDE series directional valve is a straight‑through, two‑position three‑way valve with an electromagnetic starter. It features pressure compensation, optional manual emergency operation, and interchangeable coil options for 12 V and 24 V DC supply.
The manual provides technical data, performance limits, electrical characteristics, mounting dimensions, and characteristic curves, along with ordering codes for optional components such as coils, connectors, and manual overrides.
| Maximum working pressure | 350 bar |
|---|---|
| Maximum flow | 30 Vmin |
| Valve weight | 0.3 kg |
| Coil weight | 0.25 kg |
| Supply voltage options | 12 V, 24 V DC |
| Switch‑on time | < 80 ms |
| Switch‑off time | < 50 ms |
| IP rating (K4 connector) | IP65 |
| IP rating (C4 connector) | IP66 |
| IP rating (K40 connector) | IP69K |
The valve can operate up to 350 bar.
Coils are offered for 12 V and 24 V DC supply.
The valve weighs approximately 0.3 kg.
