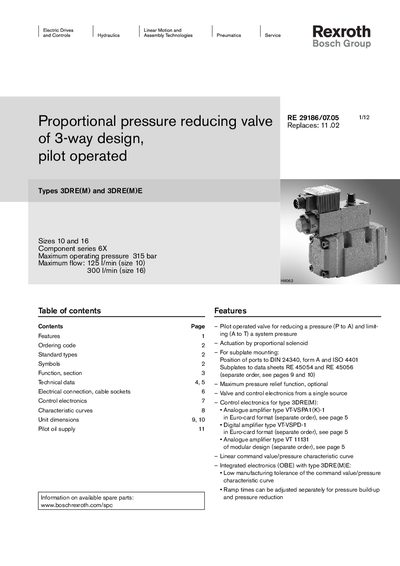

The 3DRE and 3DRE(M)E are pilot-operated pressure-reducing valves that can reduce (P to A) and limit (A to T) system pressure. They can be operated by a proportional solenoid. They are suitable for subplate mounting and feature interfaces based on DIN 24340 and ISO 4401 standards.
The 3DRE(M) and 3DRE(M)E are pilot‑operated, 3‑way proportional pressure reducing valves that lower system pressure and can include a maximum pressure relief function. They are supplied with integrated electronics (OBE) or can be used with external control electronics.
The document contains technical data, electrical connection guidelines, installation orientation, control electronics description, pilot oil supply options, characteristic curves, and safety notes. It also lists ordering codes, seal material, IP rating, and recommended wiring practices.
| Maximum operating pressure | 315 bar |
|---|---|
| Maximum flow (size 10) | 125 l/min |
| Maximum flow (size 16) | 300 l/min |
| Supply voltage | 24 VDC |
| Minimum control current | 100 mA |
| Maximum control current (3DRE/3DREM) | 1600 mA |
| Available sizes | 10 and 16 |
| Seal material | FKM |
| IP rating | IP65 |
The valve can operate up to 315 bar.
The valve requires a 24 VDC supply.
Potentiometer R14 adjusts the rise time and potentiometer R13 adjusts the drop time of the solenoid current.
