GSU series slide units are double-acting linear cylinders with a magnetic piston, hydraulic cushioning and adjustable end stops.

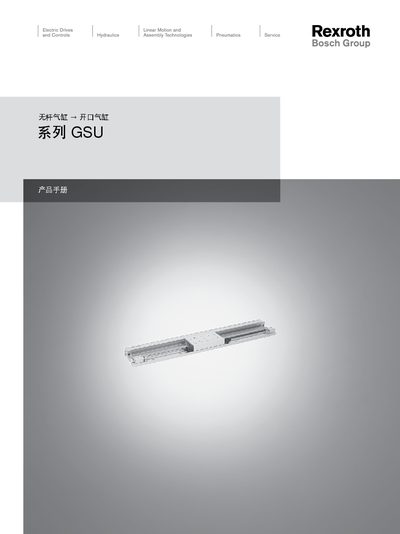

This manual provides the technical data, installation instructions and operating guidelines for the Bosch Rexroth GSU series no‑pole open‑mouth pneumatic cylinders. It includes part numbers, component lists and reference standards needed for proper integration.
Key specifications such as working pressure, temperature range, maximum stroke and speed are listed, together with recommended Easy‑2‑Combine mounting components and contact information for regional Bosch Rexroth offices. This manual is written in Japanese.
| Working pressure | 1.5 bar / 8 bar |
|---|---|
| Maximum stroke | 1000 mm |
| Weight (kg) for 200 mm stroke | 1.78 kg |
The cylinders operate at a pressure range of 1.5 bar to 8 bar.
The maximum stroke length is 1000 mm.
The manual references ISO 4762:2004 and ISO 2338:1997.
The Easy‑2‑Combine components such as CK1‑LI‑14, CK1‑LI‑15 and CK1‑LI‑16 are recommended.
