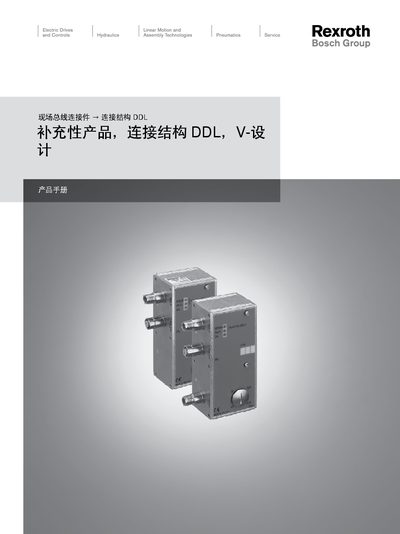

Product manual, introducing the accessories of connection diagnostic device (DDL), V-design. Including connection cables, DDL-cables, sockets, plugs, shields, etc.
This document provides the connection structure, technical specifications, and contact information for the Bosch Rexroth DDL V- scene bus connector used in pneumatic applications. It includes details on connector types, temperature limits, IP protection, and electrical ratings.
The manual also lists part numbers, dimensions, and material information, along with worldwide Bosch Rexroth sales contacts for ordering and support.
| Operating temperature range | +52 °C to +509 °C |
|---|---|
| IP protection rating | IP 65 |
| IP protection rating | IP 67 |
| Maximum cable length (DDL) | 40 m |
| Connector pin count | M12x1, 5‑pin |
The DDL V- connector can operate from +52 °C up to +509 °C.
The connector is rated IP 65 and also IP 67 in different variants.
The M12x1 connector version has 5 pins.
