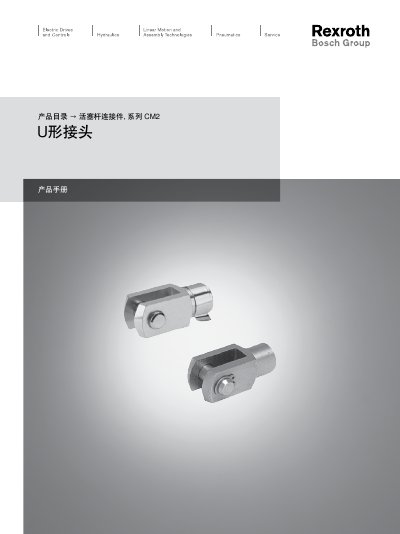

This product catalog provides detailed information on the U-shaped connectors in the CM2 series of piston rod connectors, including product codes, materials, and weights.
This guide provides an overview of the CM2 series U‑shaped piston rod connectors offered by Bosch Rexroth. It lists the available material variants, part numbers and basic specifications for each size.
The document includes tables of stainless‑steel and galvanized‑steel options, their corresponding dimensions (e.g., M10×1.25, M12×1.25) and weight per part. Contact information for Bosch Rexroth offices worldwide is also provided. This manual is written in Chinese.
| Material AP2 | Stainless steel |
|---|---|
| Part code 3590502000 | Stainless steel, weight 0.1 kg |
| Part code 1822122028 | Galvanized steel, weight 0.01 kg |
The document was dated 2012‑02‑06.
The connector is manufactured by Bosch Rexroth AG.
