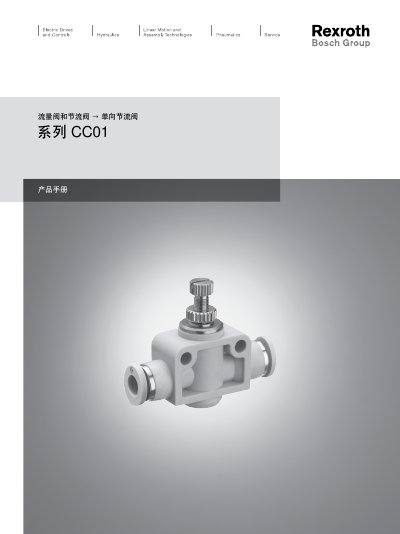

CC01 series one-way flow valves, flow range 60-875 l/min, flow direction 1 -> 2, quick coupling - quick coupling
The CC01 series is a unidirectional throttle valve designed for pneumatic applications, allowing flow control from port 1 to port 2. It is supplied by Bosch Rexroth and includes quick‑connect fittings for easy installation.
The manual lists technical data such as flow range, pressure limits, temperature limits, material construction, and detailed size tables for different port diameters. Contact information for Bosch Rexroth offices worldwide is also provided. This manual is written in Chinese.
| Flow rate (Qn) | 60 - 875 l/min |
|---|---|
| Throttle direction | 1 → 2 |
| Working pressure range | 0.5 bar – 10 bar |
| Operating temperature (environment) | +0°C – +60°C |
| Medium | Compressed air |
| Material (shell) | Polyester resin |
| Connector type | Quick‑connect |
The CC01 series can handle flow rates from 60 to 875 l/min.
The valve operates between 0.5 bar and 10 bar.
It is intended for use with compressed air.
The valve can be used from 0 °C up to 60 °C for both environment and medium.
