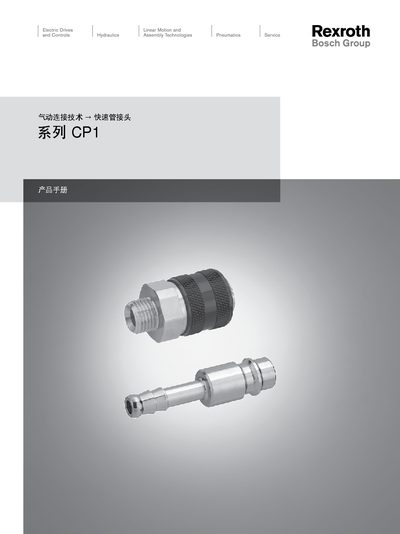

Pneumatic connection technology → Quick pipe connectors Series CP1 product manual, introduces the features and characteristics of the Series CP1 closed connector with external thread
The CP1 quick tube connect head is a pneumatic connection component designed for fast and reliable tube coupling. It is part of Bosch Rexroth's pneumatic product range and is supplied with various sealing and material options.
Key technical data include a working pressure range of 0 bar to 35 bar, operating temperature limits from –20 °C to +100 °C, and construction from brass (黄銅). The document lists part numbers, dimensions, and material details for each variant, and provides contact information for Bosch Rexroth offices in China and Germany. This manual is written in Japanese.
| Working pressure | 0 bar / 35 bar |
|---|---|
| Operating temperature range | -20 °C to +100 °C |
The CP1 head can operate from 0 bar up to 35 bar.
It is rated for ambient temperatures from –20 °C to +100 °C.
