The Philips DVP3268K DVD player with USB interface can play DivX videos and play videos/music on USB flash drives via USB 2.0 connection. It supports CD, (S)VCD, DVD, DVD+R/RW and DVD-R/RW.

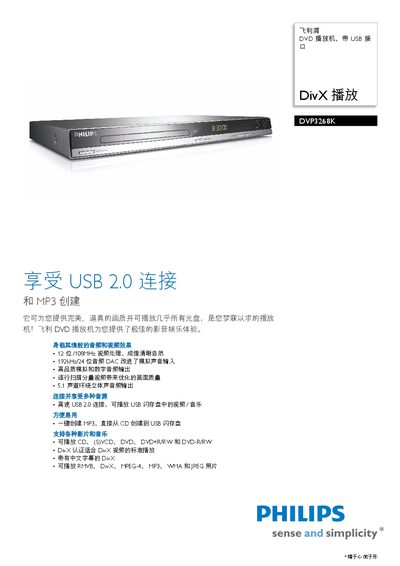

This manual introduces the Philips DVP3268K DVD player, highlighting its ability to play a wide range of media including CD, VCD, DVD, DVD+R/RW, DivX, MP4, RMVB and various audio formats via USB. It also describes the high‑resolution video processing and 5.1‑channel surround sound capabilities.
Technical specifications, connection options, power requirements, dimensions and included accessories are listed, providing users and technicians with the necessary information for setup, operation, and maintenance. This manual is written in Chinese.
| Audio DAC | 192 kHz / 24‑bit |
|---|---|
| Audio DAC (alternative spec) | 2‑bit, 192 kHz |
| Frequency response | 30‑20000 Hz |
| Total harmonic distortion (1 kHz) | > 65 dB |
| Crosstalk (1 kHz) | > 70 dB |
| Audio system | Dolby Digital, DTS |
| Power consumption (standby) | < 1 W |
| Input voltage | 110‑240 V, 50/60 Hz |
| Dimensions (W×H×D) | 360 × 37 × 209 mm |
It can play CD, VCD, DVD, DVD+R/RW, DVD‑R/RW, DivX, MPEG‑1, MPEG‑2, MPEG‑4, RMVB and various picture formats such as JPEG.
The player consumes less than 10 W during operation and less than 1 W in standby mode.
