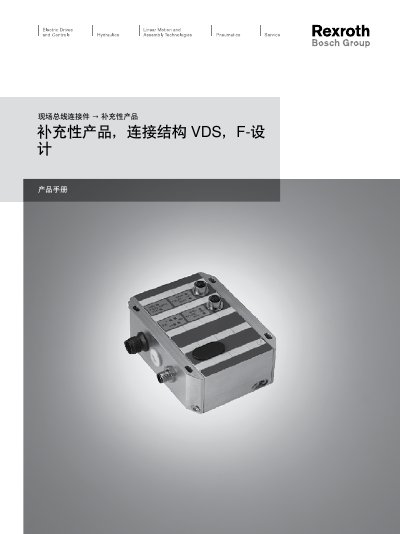

Bosch Rexroth VDS F-Design Fieldbus Connector User Guide

This manual provides detailed information on the fieldbus connections for the connection structure VDS, F design.

Brand: Rexroth
Category: Industrial Supply
Document type: User Manual
Language: Chinese
Pages: 23
File format: PDF
File size: 1.7 MB
Published: 15 January, 2012
Updated: 30 September, 2023
MD5 checksum: D95194F01CCA0D8A603548AF1A3C4BC4
PDF: Bosch Rexroth VDS F-Design Fieldbus Connector User Guide PDF

About this manual

This document describes the VDS (Valve Drive System) fieldbus connector in the F‑Design configuration. It covers the connector’s mechanical structure, compatible multi‑core plugs, and the various fieldbus protocols (PROFIBUS DP, CANopen, DeviceNet, Remote I/O) supported by the product.

Key technical data such as operating voltage, current consumption, environmental temperature range, IP protection rating, and maximum cable length are provided, together with part numbers, material information and mounting instructions for use in industrial automation systems. This manual is written in Chinese.

What's inside

Product Overview
Connection Structure VDS
Fieldbus Protocols
Technical Specifications
Materials and Finish
Mounting and Installation
Part Numbers and Codes
Environmental Ratings

Specifications

Operating voltage	24 V DC
Current consumption	0.2 A
Environmental temperature range	+0°C to +50°C
IP protection rating	IP65
Maximum VDS line length	10 m
Housing material	Aluminium

Frequently asked questions

What is the operating voltage of the VDS connector?

The connector operates at 24 V DC.

What IP protection level does the connector have?

It is rated IP65.

What is the allowed temperature range for the connector?

The connector can be used from +0 °C up to +50 °C.

How long can a VDS bus line be?

The maximum VDS bus line length is 10 m.

Download PDF (1.7 MB)
