RF controller produced by Shenzhen King-Star Technology Co., Ltd., the operating voltage is DC9/12/24V, the external dimensions are 95× 89× 26 mm, and the output is three CMOS open drain outputs. The connection mode is common anode and the rated load current is 4A per way. It adopts RF wireless remote control, the functions of each key on the remote control are as follows: key A: color selection function key, which can select different color changes, a total of 12 changes. Key B: each time you press, the change speed level increases by 1, a total of 125 levels. The key is pressed without moving, and the change speed level increases rapidly. Key C: each time you press, the change speed level decreases by 1, a total of 125 levels. The key is pressed without moving, and the change speed level decreases rapidly. Key D: in any state, you can turn on or off the controller output.
The Kestar RF controller is a wireless remote‑controlled device with twelve selectable color patterns and speed adjustment functions. It operates over a temperature range of –20 °C to 60 °C and is powered by a DC supply.

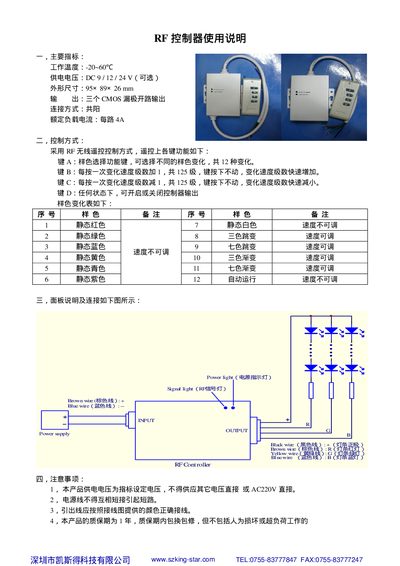

The manual describes the controller's three CMOS open‑collector outputs, common‑positive wiring, and a rated load current of 4 A per channel. It also provides key functions (A‑D), panel layout, and safe wiring guidelines. This manual is written in Chinese.
| Operating Temperature | -20~60 °C |
|---|---|
| Supply Voltage | DC9‑12 V (optional) |
| Dimensions | 95 × 89 × 26 mm |
| Outputs | Three CMOS open‑collector outputs |
| Connection Type | Common‑positive |
| Rated Load Current per Channel | 4 A |
Key A allows selection of 12 different color variations.
Both keys B and C adjust the speed level in steps of 1, with a total of 125 levels.
Key D toggles the controller output on or off in any state.
Each output channel is rated for a load current of 4 A.
