The 'HC10 and 'HCT10 logic gates utilize silicon gate CMOS technology to achieve operating speeds similar to LSTTL gates with the low power consumption of standard CMOS integrated circuits. All devices have the ability to drive 10 LSTTL loads. The HCT logic family is functionally pin compatible with the standard LS logic family.
The CD54HC10, CD74HC10, CD54HCT10 and CD74HCT10 are high‑speed CMOS logic devices that implement a triple 3‑input NAND function. They feature buffered inputs, low power consumption, and are compatible with both LSTTL and standard CMOS loads. The devices are offered in several package types including CERDIP, PDIP and SOIC.

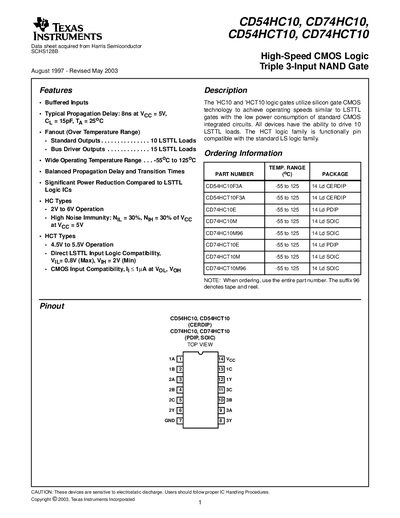

The datasheet provides absolute maximum ratings, DC electrical specifications, switching performance, mechanical dimensions, pinout diagrams and ordering information. It also includes a caution about electrostatic discharge handling and a legal notice from Texas Instruments.
| Typical Propagation Delay | 8 ns |
|---|---|
| Operating Temperature Range | -55°C to 125°C |
The typical propagation delay is 8 ns at VCC = 5 V, CL = 15 pF and 25 °C.
The device is rated for operation from –55 °C to 125 °C.
