DTE temperature controller is an industrial controller produced by Delta, which supports multiple input sensors, output forms include relay output, voltage pulse output, linear current output, analog voltage output, and supports Modbus communication protocol

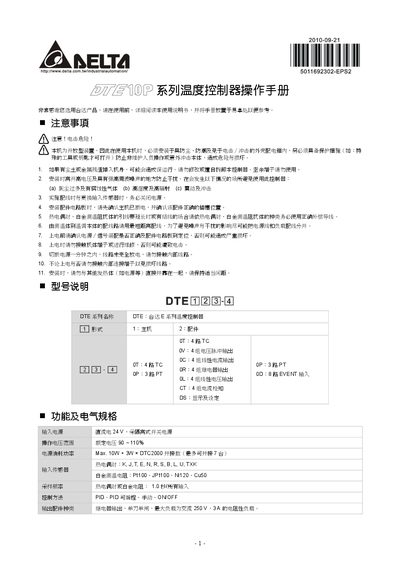

The DTE10P temperature controller is a compact, open‑type device intended for installation in a dust‑proof, moisture‑proof enclosure. It supports three standard input channels (thermocouple or Pt‑type resistance) and can be expanded to six channels with the DTE20P module. The controller offers PID, ON‑OFF, manual and programmable PID control, as well as various alarm and output functions.
The manual details wiring, safety precautions, power requirements, output types (relay, voltage pulse, current, analog voltage), communication via RS‑485 Modbus (RTU/ASCII), and advanced features such as CT, EVENT, slope control and power‑on memory. Configuration is performed by writing specific values to Modbus registers. This manual is written in Chinese.
| Analog voltage output | 0 ~ 10 V (load impedance > 1 kΩ) |
|---|---|
| Communication protocol | Modbus RTU/ASCII |
The controller uses Modbus protocol in RTU or ASCII format over RS‑485.
Write 1234H to address 47F1H and then 0008H to address 4824H to activate the programmable PID power‑on storage function.
