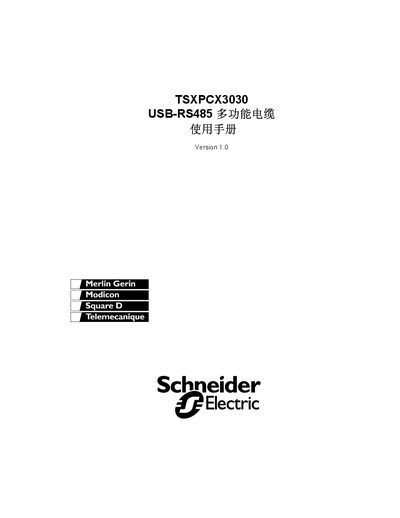

The user manual for TSXPCX3030 USB-RS485 Multi-function Cable provides an overview of the features and usage of the cable.
This guide introduces the TSXPCX3030 USB‑RS485 multi‑function cable, its USB‑to‑RS485 conversion, and its use with Schneider TSX series PLCs or any RS‑485 device. It describes the cable’s general characteristics, supported operating systems, and the 4‑bit rotary DIP switch for mode selection.
The document provides step‑by‑step driver installation instructions for Windows platforms, details the pin assignments for the mini‑DIN and USB‑A connectors, and includes safety warnings and warranty information. This manual is written in Chinese.
| USB Interface | USB 1.1 compatible |
|---|---|
| RS‑485 Speed | 300 kbps to 2000 kbps |
| Receive Buffer | 384 bytes |
| Transmit Buffer | 128 bytes |
| Mode Selection Switch | 4‑bit rotary DIP switch |
The cable supports Microsoft Windows 98, Windows Me, Windows 2000 and Windows XP.
Only one TSXPCX3030 cable can be connected to a PC at a time.
It selects the work mode of the cable, allowing automatic control or PLC‑controlled RS‑485 communication.
