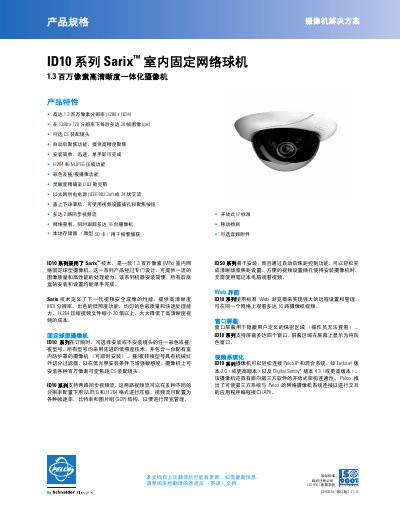

The ID10 series is a 1.3 megapixel (MPx) indoor network fixed dome camera that uses Sarix™ technology and is specifically designed to provide state-of-the-art image quality and high-performance processing. The series is easy to install, with all rear-mounting and setup being accomplished with one hand.
The Sarix ID10 series is a 1.3‑megapixel indoor fixed dome camera offering high‑resolution imaging, automatic back‑focus, H.264/MJPEG compression, and optional audio. It supports PoE (IEEE 802.3af) or 24 V AC power and can stream up to two synchronized video feeds, viewable on a web browser.
Technical specifications include a maximum resolution of 1280 × 1024, low‑light sensitivity down to 0.03 lux, power consumption under 6 W, and an operating temperature range of 0 °C to 50 °C. The camera weighs 2.0 lb (0.9 kg) and includes a micro‑SD slot for local storage, multiple network protocols, and a range of accessories such as PoE injectors and mounting brackets. This manual is written in Chinese.
| Maximum resolution | 1280 x 1024 |
|---|---|
| Low‑light sensitivity | 0.03 lux |
| Power input | 24 V AC or PoE (IEEE 802.3af) |
| Weight (without lens) | 2.0 lb (0.9 kg) |
| Operating temperature | 0 °C to 50 °C |
| Synchronous video streams | Up to 2 |
The camera supports a maximum resolution of 1280 × 1024 pixels.
Yes, it can be powered by 24 V AC or PoE (IEEE 802.3af).
The camera can provide up to two synchronous video streams.
The camera can operate in illumination as low as 0.03 lux.
