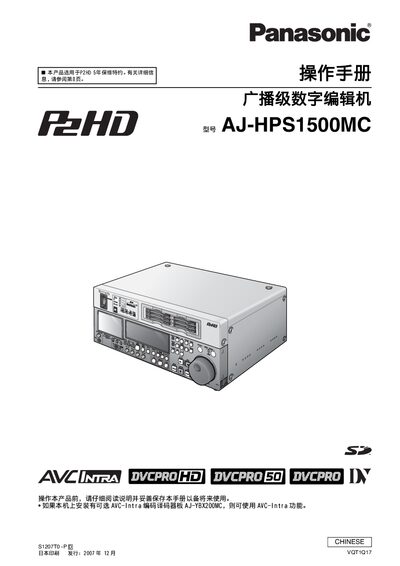

The Panasonic AJ-HPS1500MC broadcast digital editing machine user manual provides setup, operation, safety, and maintenance instructions.
This manual covers safety precautions, installation requirements, and grounding instructions for the AJ-HPS1500MC broadcast‑level digital editing machine. It explains how to mount the unit in a rack, connect power safely, and avoid hazards such as fire, electric shock, and moisture exposure.
The guide details the user interface, P2 card handling, playback and editing functions, network and USB connectivity, hardware and software specifications, and procedures for firmware updates and routine maintenance. It also lists supported video/audio formats, storage media options, and environmental operating limits. This manual is written in Chinese.
| Weight | 14 kg |
|---|---|
| Dimensions (W×H×D) | 424.0 mm × 175.2 mm × 414.7 mm |
| Operating Temperature | 5 °C to 40 °C |
| Operating Humidity | 10 % to 80 % (non‑condensing) |
| Power Consumption | 80 W (100‑240 V AC, 50/60 Hz) |
| Supported Recording Formats | DVCPRO HD, DVCPRO50, DVCPRO, DV, AVC‑Intra 100 M/50 M |
| Video Signal Formats | 1080/50i, 59.94i, 720/50p, 59.94p, 480/50i, 59.94i |
| Audio Sample Rate | 48 kHz, 16‑bit, up to 8 channels (DVCPRO HD) |
The device supports SD and SDHC cards that meet the SD/SDHC specifications; other card types such as MMC or mini‑SD without an adapter must not be used.
The unit operates in temperatures from 5 °C to 40 °C and humidity from 10 % to 80 % non‑condensing.
