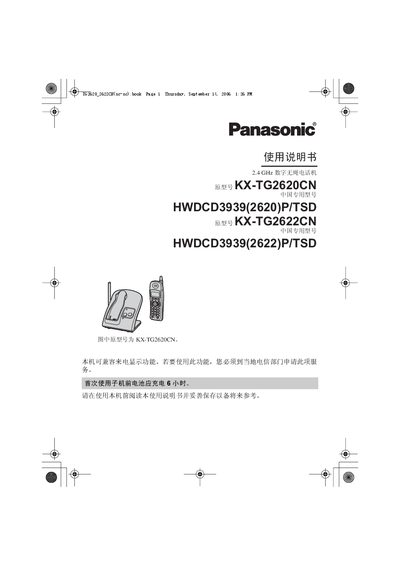

This user manual provides instructions and features of KX-TG2620CN and KX-TG2622CN telephone devices, including caller ID, phonebook, system settings, etc.
The document explains how to install the base unit and sub‑handsets, configure settings, use the phonebook, caller ID service, and other features of the Panasonic KX‑TG2620CN and KX‑TG2622CN cordless phones. It also covers optional accessories, multi‑unit operation, and system settings.
Important safety guidelines, maintenance tips, and detailed specifications are included to ensure reliable performance and safe use. The manual ends with troubleshooting procedures and a full index for quick reference. This manual is written in Chinese.
| Working environment | 5 °C – 40 °C |
|---|---|
| Operating frequency | 2.4 GHz – 2.48 GHz |
| Base unit dimensions (H × W × L) | 139 mm × 136 mm × 127 mm |
| Base unit weight | ≈ 300 g |
| Base unit standby power | ≈ 2.9 W |
| Base unit maximum power output | 100 mW |
| Battery type | Ni‑MH 2.4 V, 830 mAh |
| Handset dimensions (H × W × L) | 167 mm × 48 mm × 31 mm |
| Handset weight | ≈ 140 g |
| Handset standby power | ≈ 1.1 W |
Charge the battery for 6 hours before first use.
The phone operates in the 2.4 GHz to 2.48 GHz band.
The KX‑TG2620 can be configured with one sub‑handset.
The maximum RF power output is 100 mW.
