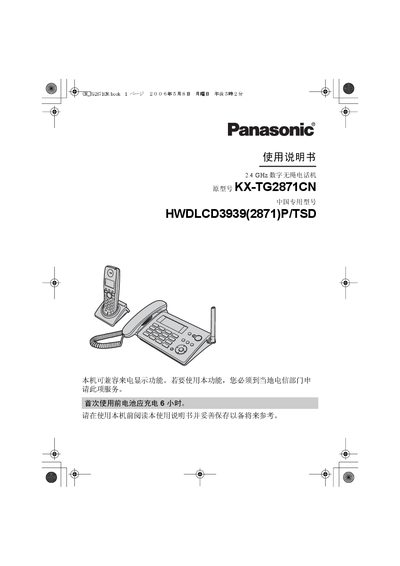

This manual describes how to use the KX-TG2871CN Digital Cordless Telephone.
This manual provides step‑by‑step instructions for installing, configuring, and using the Panasonic KX‑TG2871CN cordless phone system. It includes safety guidelines, battery handling, and detailed descriptions of the handset’s controls, display, and features such as caller ID, phone book, and answering system.
Additional sections cover multi‑phone operation, remote functions, programmable settings, and technical specifications. The document also lists required accessories, charging procedures, and troubleshooting tips to help users maintain optimal performance. This manual is written in Chinese.
| Working environment (base unit) | 5 °C – 35 °C |
|---|---|
| Frequency (base unit) | 2.402 GHz – 2.481 GHz |
| Dimensions (base unit) | ≈ 78 mm × 234 mm × 174 mm |
| Weight (base unit) | ≈ 620 g |
| Standby power consumption | ≈ 1.8 W |
| Maximum power consumption | ≈ 3.7 W |
| Power supply | AC adapter 220‑240 V, 50/60 Hz |
| Subphone battery | Ni‑MH 2.4 V, 830 mAh |
| Charger dimensions | ≈ 58 mm × 87 mm × 95 mm |
| Charger weight | ≈ 90 g |
The battery must be charged for 6 hours before the first use.
Only the included Panasonic AC power adapter model PQLV207CN should be used.
When charging is complete, the display shows “充电完成”.
