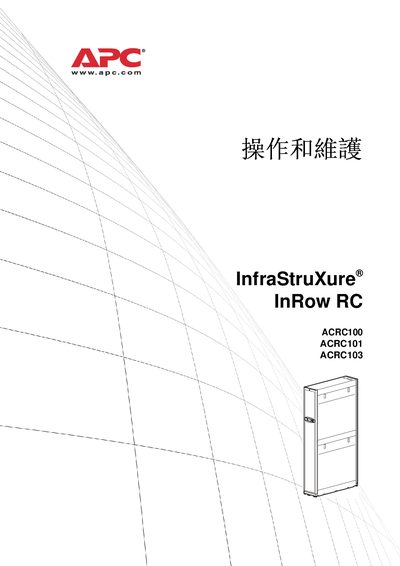

This document provides instructions for operating and maintaining InfraStruXure InRow RC ACRC100 ACRC101 ACRC103. The manual is available in multiple languages on the enclosed CD.
This manual covers the operation, maintenance, and troubleshooting of the APC InfraStruXure InRow RC series (ACRC100, ACRC101, ACRC103). It explains how to use the LCD display, navigate menus, change settings, and manage passwords, as well as how to start and stop the cooling units.
Key sections include display interface details, network configuration (TCP/IP, DHCP, SNMP, SSH), Modbus settings, PID control parameters, preventive maintenance procedures, and warranty information. The document also provides safety warnings and regulatory compliance notes for FCC, ICES, and VCCI. This manual is written in Chinese.
| Cool Output | kW |
|---|---|
| Cool Setpoint | °C or °F |
| Maximum Rack Temperature | °C or °F |
| Air Flow | CFM or LS |
| Unit Identifier |
Select the On/Standby option in the Main Menu and set the value to On.
Both the Device and Admin passwords default to "apc" (lower‑case).
Navigate Main Menu > Set Password > Change Passwords, then use the arrow keys to select characters and press Enter to save.
