DVPEN01-SL is an Ethernet communication module with functions such as remote setting, communication, sending E-Mail, automatic correction of PLC host time, and data exchange. It supports Modbus TCP communication protocol and can be used as a Modbus TCP master to control peripheral devices.
The DVPEN01-SL is an Ethernet communication module for Delta PLC systems. It supports Modbus TCP (master and slave), email sending, automatic PLC clock calibration, and point‑to‑point data exchange up to 200 bytes. The module features auto MDI/MDIX, a single RJ‑45 port, and an RS‑232 port for serial communication.

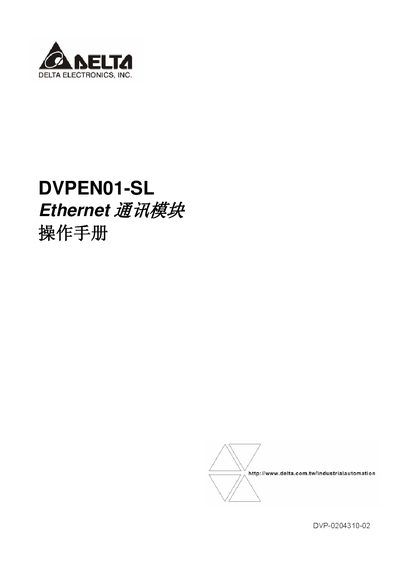

This manual covers functional specifications, mechanical dimensions, installation and wiring, control register definitions, software settings (network, email, data exchange, RTU), and several application examples such as Modbus TCP master operation and RTU communication. Safety precautions and protective measures for the open‑type chassis are also included. This manual is written in Chinese.
| Network interface | RJ-45 with Auto MDI/MDIX |
|---|---|
| Number of RJ-45 ports | 1 |
| Transmission speed | 10/100 Mbps |
| Serial interface | RS-232, 1 Port |
| Operating temperature | 0 ~ 55 °C |
| Storage temperature | -25 ~ 70 °C |
| Power supply voltage | 24 VDC |
| Power consumption | 1.5 W |
| Insulation voltage | 500 V |
| Weight | 92 g |
It supports Modbus TCP as well as ICMP, IP, TCP, UDP, DHCP, SMTP, NTP and other standard Ethernet protocols.
No, the module has Auto MDI/MDIX detection, so a standard CAT‑5e cable can be used without jumpers.
The module operates from a 24 VDC supply and consumes about 1.5 W of power.
