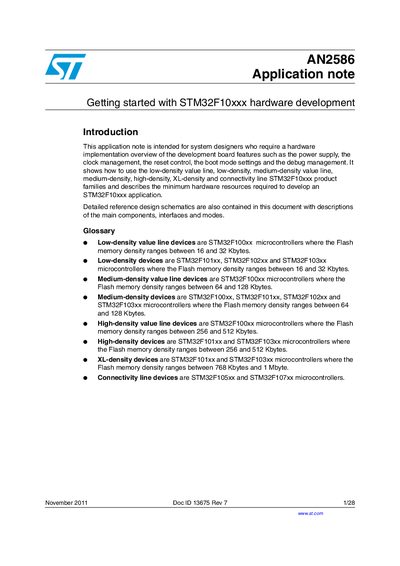

The application note is intended for system designers who need a hardware implementation overview of the STM32F10xxx development board. It describes the power‑supply architecture, clock management, reset control, boot‑mode settings and debug management, and shows how to use the various density families of the STM32F10xxx product line.
The document includes detailed reference schematics, component descriptions, recommended decoupling, battery‑backup options, and guidelines for using the ADC, internal regulator and low‑voltage detectors. It also provides a revision history and references to related evaluation boards.
| Operating voltage (Vpp) | 2.0 V to 3.6 V |
|---|---|
| Internal regulator output | 1.8 V digital power |
| ADC supply range (when used) | 2.4 V to 3.6 V |
The device operates from a 2.0 V to 3.6 V supply (Vpp).
