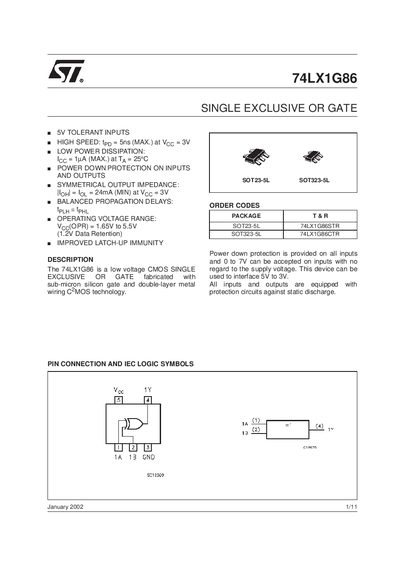

74LX1G86 is a low voltage CMOS single exclusive OR gate fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology.
The 74LX1G86 is a low‑voltage CMOS single exclusive‑OR gate fabricated with sub‑micron silicon gate and double‑layer metal wiring CMOS technology. It features power‑down protection on all inputs, 5 V tolerant inputs, and symmetrical output impedance.
The document lists absolute maximum ratings, recommended operating conditions, DC and AC electrical characteristics, capacitance values, and detailed mechanical dimensions for the SOT‑23‑5L and SOT‑323‑5L packages, as well as tape‑and‑reel dimensions. Legal disclaimer and trademark information are included at the end.
| Operating voltage range | 1.65 V to 5.5 V |
|---|---|
| Maximum propagation delay (tpp) | 5 ns (max) |
| Input capacitance (Cin) | 0‑4 pF |
| Low‑level output current (Vcc = 2.7 V to 3.0 V) | +12 mA |
| Supply voltage (absolute max) | -0.5 V to +7.0 V |
| Storage temperature range | -65 °C to +150 °C |
The device operates from 1.65 V up to 5.5 V.
The propagation delay tpp is specified as up to 5 ns.
The supply voltage may not exceed -0.5 V to +7.0 V.
