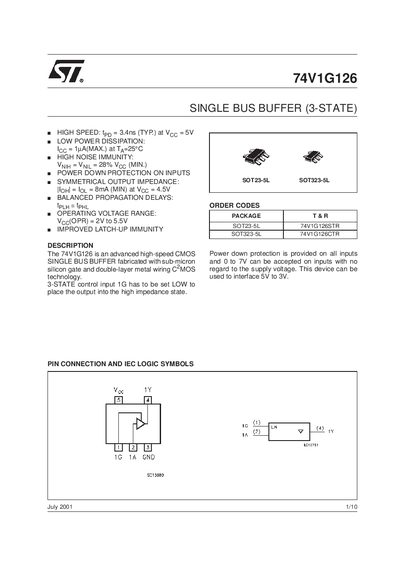

The 74v1g126 is an advanced high-speed CMOS SINGLE BUS BUFFER fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology.
The 74V1G126 is an advanced high‑speed CMOS single‑bus buffer fabricated with sub‑micron silicon gate technology. It features a 3‑state control input, low power dissipation (typical 1 W at 25 °C), high noise immunity and power‑down protection on all inputs, allowing operation over a supply range of 2 V to 5.5 V.
The device is offered in two standard packages, SOT23‑5L and SOT323‑5L, with detailed mechanical dimensions provided. Tape‑and‑reel versions are also available for both package types. Electrical specifications include typical propagation delay of 3.4 ns at VCC = 5 V, input high level voltage minimum of 2.0 V, and low‑level output voltage maximum of 0.1 V.
| Typical propagation delay (tpp) | 3.4 ns |
|---|---|
| Supply voltage range | 2 V to 5.5 V |
| Maximum power dissipation | 1 W (typ.) at 25 °C |
The typical propagation delay is about 3.4 ns when the supply voltage is 5 V.
It operates from 2 V up to 5.5 V.
