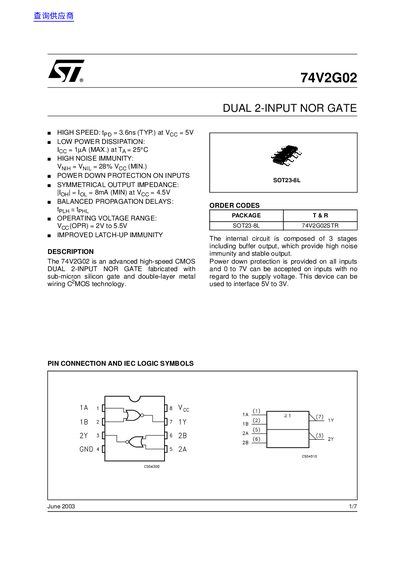

74V2G02 is an advanced high-speed CMOS DUAL 2-INPUT NOR GATE fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology. The internal circuit is composed of 3 stages including buffer output, which provide high noise immunity and stable output.
The 74V2G02 is a high‑speed CMOS dual 2‑input NOR gate fabricated with sub‑micron silicon gate and double‑layer metal wiring. It offers low power dissipation, high noise immunity, and power‑down protection on all inputs, allowing operation with input voltages from 0 to 7 V regardless of supply voltage.
Key specifications include a typical propagation delay of 3.6 ns at 5 V, operating voltage range of 2 V to 5.5 V, input capacitance of 10 pF, and availability in an SOT23‑8L package with detailed mechanical dimensions. The datasheet also lists absolute maximum ratings, recommended operating conditions, and test circuit information.
| Propagation delay (typ) | 3.6 ns at VCC = 5 V |
|---|---|
| Operating voltage range | 2 V to 5.5 V |
| Output high level voltage (VOH) min | 2.0 V at IOH = ‑50 µA |
| Quiescent supply current (typ) | 1 µA (max) |
The device operates from 2 V to 5.5 V supply voltage.
Typical propagation delay is 3.6 ns when powered at 5 V.
It is offered in an SOT23‑8L surface‑mount package.
