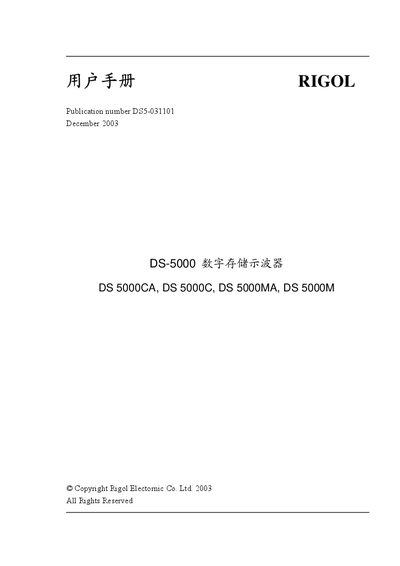

This manual introduces the RIGOL DS 5000 series digital storage oscilloscopes. The series oscilloscopes have achieved the ease of use, excellent technical indexes and many functions.
This manual begins with safety information, covering proper grounding, use of approved power cords, fuse selection, and warnings about operating the device with the cover open or in hazardous environments. Only qualified personnel should perform maintenance, and the manual stresses keeping the instrument clean and dry.
The guide then describes the front‑panel layout, channel bandwidths, sampling rates, trigger options, and measurement functions. It includes detailed procedures for setting vertical, horizontal, and trigger systems, using automatic measurements, cursor functions, FFT analysis, and optional communication modules such as EM5‑COM and EM5‑CM. Example applications illustrate signal measurement, waveform capture, and advanced analysis. This manual is written in Chinese.
| Maximum Channel Bandwidth | 200 MHz (selected models) |
|---|---|
| Real‑time Sampling Rate | 1 GSa/s (DS‑5000CA/MA series) |
| Equivalent Sampling Rate | 50 GSa/s |
| Display Resolution | 320 × 240 pixels, color LCD |
| Automatic Measurement Parameters | 20 |
| Trigger Types | Edge, video, pulse‑width, and advanced trigger functions |
| Optional Communication Modules | EM5‑COM (RS‑232/GPIB), EM5‑CM (RS‑232/GPIB with pass/fail output) |
Both the DS‑5000CA and DS‑5000MA models support a real‑time sampling rate of 1 GSa/s.
The instrument can automatically measure 20 different waveform parameters.
