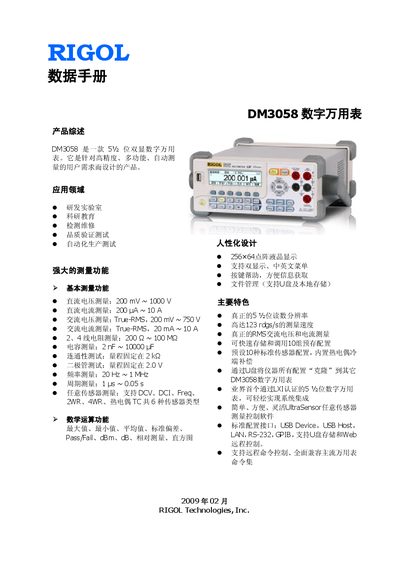

RIGOL DM3058 is a 5½-digit dual-display digital multimeter with high accuracy, multifunctionality, and automatic measurement. It is designed for users with high precision, multifunctional, and automatic measurement needs. It is suitable for applications in research laboratories, scientific research education, testing and maintenance, quality verification testing, and automated production testing. The DM3058 offers powerful measurement functions and mathematical operation functions, and supports arbitrary sensor measurements. It features true 5½-digit resolution, a measurement speed of up to 123 rdgs/s, true RMS AC voltage and current measurement, quick storage and recall of 10 preset configurations, and cloning of instrument configurations to other DM3058 digital multimeters via USB. It is the industry's first LXI-certified 5½-digit digital multimeter, enabling easy system integration. The DM3058 also includes the UltraSensor measurement control software for flexible and convenient control. It has various interfaces for standard configuration and supports remote command control and compatibility with mainstream multimeter command sets. The DM3058 has a user-friendly design with a 256×64 dot matrix LCD display, dual displays, and support for both Chinese and English menus. It also includes features such as key help and file management. The dual-display mode and arbitrary sensor function enhance measurement efficiency, and the Pass/Fail operation function provides clear test results. The DM3058 is a powerful and user-friendly digital multimeter with advanced features and capabilities.
The DM3058 is a 5‑digit digital multimeter offering a wide range of measurement functions, including DC/AC voltage, current, resistance, capacitance, frequency and more. It features a 256×64 pixel LCD, True‑RMS detection, and extensive data‑logging and remote‑control capabilities via UltraSensor and web interface.
The manual describes safety categories (CAT I 1000 V, CAT II 600 V), mechanical dimensions (107 mm × 231.6 mm × 290.5 mm), weight (2.5 kg), operating temperature (‑20 °C to 70 °C), power consumption (20 VA) and connectivity options such as USB (device/host), LAN, RS‑232 and GPIB. This manual is written in Chinese.
| Display digits | 5 |
|---|---|
| LCD resolution | 256 × 64 pixels |
| DC voltage range | 200 mV – 1000 V |
| True‑RMS capability | Yes |
| Interface options | USB Device/Host, LAN, RS‑232, GPIB |
| Power consumption | 20 VA |
| Dimensions (W × H × D) | 107 mm × 231.6 mm × 290.5 mm |
| Weight | 2.5 kg |
| Operating temperature | -20 °C to 70 °C |
| Safety category | CAT I 1000 V, CAT II 600 V |
It supports DC voltage, DC current, AC voltage, AC current, resistance, capacitance, frequency and other functions.
The instrument can be connected via USB (device or host), LAN, RS‑232 or GPIB interfaces.
The multimeter uses a 256 × 64 pixel LCD display.
It complies with CAT I 1000 V and CAT II 600 V safety standards.
