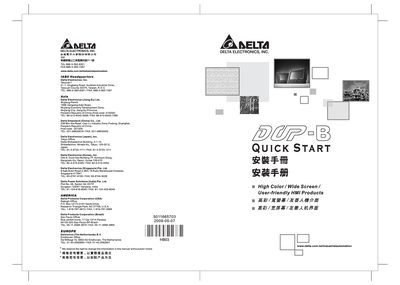

The guide offers step‑by‑step instructions for installing and wiring Delta DOP‑B human‑machine interface panels, including safety precautions, grounding requirements, and inspection procedures. It also contains storage recommendations and basic troubleshooting tips.
Key sections cover safety warnings, installation method, wiring recommendations, pin definitions for communication ports, and a specifications table that lists display, power, memory, and communication details for each DOP‑B model.
| Display Type | 5.6" TFT LCD |
|---|---|
| Resolution | 320 x 234 pixels |
| Memory (NOR Flash ROM) | 4 Mbytes (System 1 MB / User 3 MB) |
| COM1 Port | RS‑232 (supports hardware flow control) |
Install the product in a clean, dry location free from corrosive or inflammable gases or liquids, follow all wiring instructions, and ensure the HMI is properly grounded.
Ground resistance should not exceed 100 Ω.
Apply less than 0.7 N·m (6.17 lb‑inch) of torque to avoid damaging the plastic housing.
