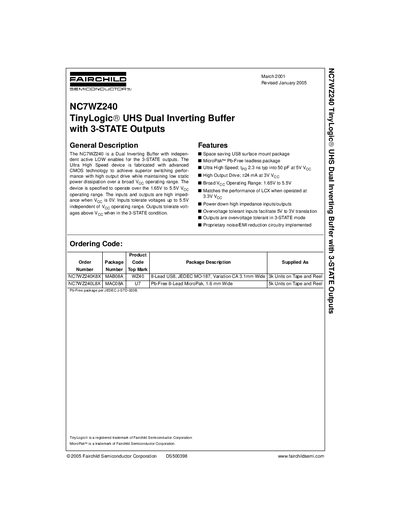

The NC7WZ240 is a Dual Inverting Buffer with independent active LOW enables for the 3-STATE outputs. The Ultra High Speed device is fabricated with advanced CMOS technology to achieve superior switching performance with high output drive while maintaining low static power dissipation over a broad VCC operating range. The device is specified to operate over the 1.65V to 5.5V VCC operating range.
The NC7WZ240 is a dual inverting buffer featuring independent active‑low enables for its 3‑state outputs. It operates over a wide VCC range and offers high output drive while maintaining low static power dissipation. The device includes over‑voltage tolerant inputs and outputs, making it suitable for level‑translation applications.
The datasheet provides detailed electrical characteristics, pin descriptions, package dimensions, and tape‑and‑reel specifications for both US8 surface‑mount and MicroPak lead‑less packages. It also includes noise characteristics, AC loading waveforms, and a life‑support policy disclaimer.
| Operating Voltage (VCC) | 1.65 V to 5.5 V |
|---|---|
| Absolute Maximum Supply Voltage | 0.5 V to 7.0 V |
| Package Types | 8‑Lead US8 surface‑mount and 8‑Lead MicroPak lead‑less |
The device is specified to operate over a VCC range of 1.65 V to 5.5 V.
The part is offered in an 8‑lead US8 surface‑mount package and an 8‑lead MicroPak lead‑less package.
Yes, inputs tolerate voltages up to 5.5 V independent of VCC, and outputs are over‑voltage tolerant in 3‑STATE mode.
