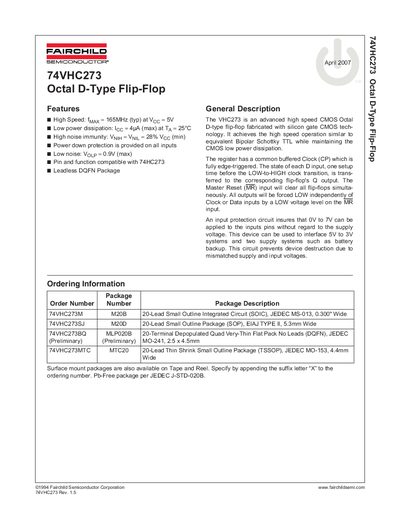

The VHC273 is an advanced high speed CMOS Octal D-type flip-flop fabricated with silicon gate CMOS technology. It achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation.
The 74VHC273 is a high‑speed CMOS octal D‑type flip‑flop offering up to 165 MHz operation at a 5 V supply while consuming only a few microamps of quiescent current. It features pin‑compatible functionality with the 74HC273 family and includes power‑down protection on all inputs.
The document provides full pin assignments, electrical characteristics (DC and AC), recommended operating conditions, and physical package dimensions for SOIC, SOP, TSSOP, and lead‑less QFN variants, along with tape‑and‑reel handling specifications.
| Maximum Clock Frequency (typ) | 165 MHz at VCC = 5 V |
|---|---|
| Supply Voltage Range (recommended) | 2.0 V to 5.5 V |
| Quiescent Supply Current (typ) | 4 µA |
| Package – SOIC (20‑lead) | M20B, 0.300" wide |
The device can operate up to 165 MHz when powered at 5 V.
The recommended supply voltage is between 2.0 V and 5.5 V.
Typical quiescent supply current is 4 µA.
