The NC7S00 is a high-performance CMOS NAND gate with features such as high speed, low power consumption, and wide voltage range.

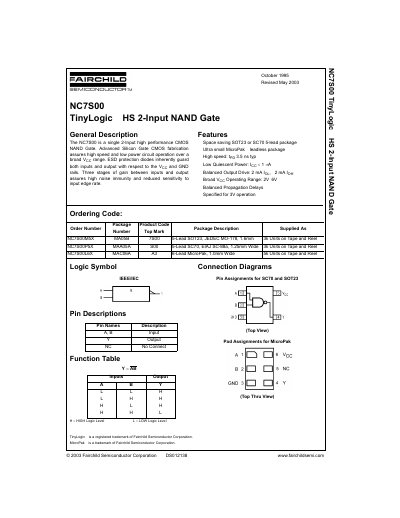

The NC7S00 is a high‑performance CMOS 2‑input NAND gate offered in space‑saving SOT23, SC70, and lead‑less MicroPak packages. It features low quiescent power, balanced output drive, and a wide VCC operating range.
The document lists absolute maximum ratings, recommended operating conditions, DC and AC electrical characteristics, tape‑and‑reel packaging dimensions, and a life‑support policy disclaimer.
| Supply Voltage (VCC) range | -0.5 V to +7.0 V |
|---|---|
| Typical propagation delay (tPLH) | 3.5 ns |
| Balanced output drive | ±2 mA |
| Input high voltage (VIH) | 1.5 V (typ) |
| Input low voltage (VIL) | 0.5 V (typ) |
| Maximum output current (IOUT) | ±12.5 mA |
| Power dissipation (PD) @ +85 °C | 200 mW (SOT23‑5) |
The recommended operating supply voltage is 2.0 V to 6.0 V.
At a 3.0 V supply, the typical propagation delay is about 3.5 ns.
The NC7S00 can source or sink up to ±12.5 mA per output pin.
