NC7S32 is a high performance CMOS OR Gate from Fairchild Semiconductor Corporation. It has SOT23 or SC70 5-lead package, high speed, low static current, high noise immunity and other features.
The NC7S32 is a high‑speed CMOS 2‑input OR gate offered in TinyLogic® HS families. It features low quiescent power, balanced output drive of up to 2 mA, and operates over a broad VCC range of 2 V‑6 V. The device includes ESD protection diodes on inputs and output and is available in space‑saving SOT‑23, SC‑70 and leadless MicroPak packages.

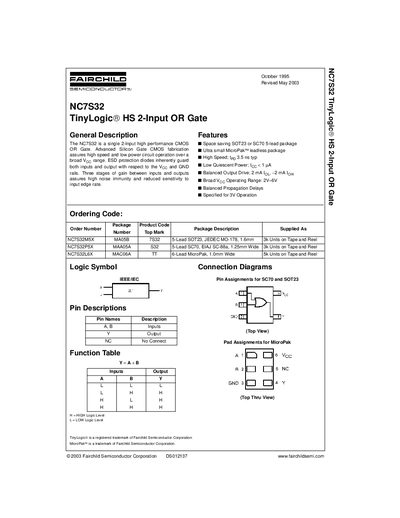

The datasheet provides absolute maximum ratings, recommended operating conditions, DC and AC electrical characteristics, pin descriptions, package dimensions, and tape‑and‑reel handling specifications. It also includes ordering codes for each package variant and a life‑support policy disclaimer.
