J-2 series Char-Lynn® hydraulic motors feature an integrated check valve, self-lubricating bushings, extended swashplate shoulders, more rugged components, and higher efficiency. These features extend seal life, reduce friction, minimize internal leakage, protect against corrosion, enhance efficiency, withstand high backpressure, and allow installation in any direction.
The Eaton Char‑Lynn J‑2 series hydraulic motor delivers up to 5 kW (6 ½ HP) from a compact size (61 mm diameter, 104‑130 mm length). It features integrated one‑way valves, self‑lubricating guide sleeves, and corrosion‑protected components for harsh environments such as marine, food processing, and agricultural use.

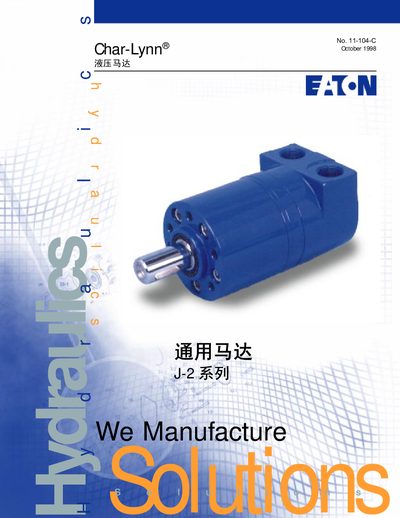

The manual provides detailed technical specifications, performance curves, installation flange dimensions, oil‑port options, and a 16‑digit model coding system to configure the motor for specific applications. Recommended oil viscosity, temperature limits, and filtration levels are also included to ensure optimal motor life. This manual is written in Chinese.
| Maximum Power | 5 kW (6 ½ HP) |
|---|---|
| Motor Diameter | 61 mm (2.4 in) |
| Motor Length | 104‑130 mm (4.1‑5.1 in) |
| Recommended Oil Viscosity | ≥ 70 SUS |
| Operating Temperature Range | -34 °C to 82 °C |
Use high‑quality anti‑wear hydraulic oil with a viscosity of at least 70 SUS.
