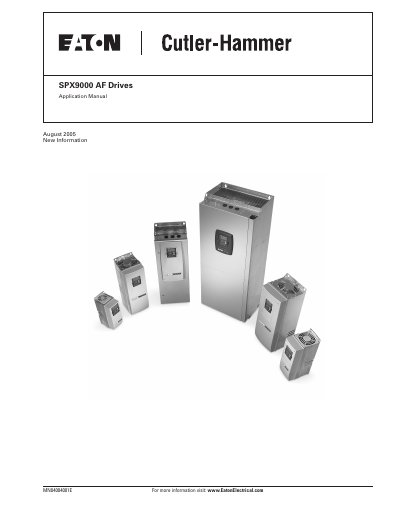

This application manual describes the application techniques for the SPX9000 AC frequency (AF) drives. The manual provides basic information for using these drives.
This manual covers the installation, setup, and operation of the Cutler‑Hammer SPX9000 AF drives. It begins with safety definitions, high‑voltage warnings, and cautions that must be followed before servicing or adjusting the equipment.
The document is organized into chapters for basic, standard, local/remote, multi‑step speed, PID, multi‑purpose, and pump/fan control applications, followed by a detailed description of parameters and an appendix with additional information. Numerous tables and figures illustrate I/O configurations, monitoring values, and control functions.
