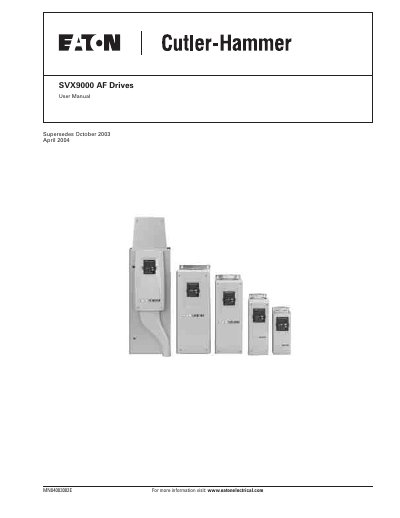

Eaton SVX9000 AF Drive User Manual

This manual is about Eaton Electrical Inc. SVX9000 AF Drives, a variable speed drive that can be used to drive motors.

Brand: Eaton
Category: Industrial Robot
Document type: User Manual
Language: English
Pages: 294
File format: PDF
File size: 1.7 MB
Published: 21 March, 2012
Updated: 30 September, 2023
MD5 checksum: BD21BE3D60DB63ECCFD6187E1574EA2D
PDF: Eaton SVX9000 AF Drive User Manual PDF

About this manual

This manual begins with safety information, definitions, and high‑voltage warnings to protect personnel during installation and service of the SVX9000 AF drive. It details mounting requirements, environmental conditions, and standard mounting instructions.

Subsequent chapters cover power and control wiring, UL‑compatible cable selection, menu navigation, keypad operation, start‑up procedures, and fault codes. An appendix supplies technical data such as power ratings, dimensions, and EMC capability.

What's inside

Safety and Hazardous High Voltage
Mounting and Space Requirements
Power Wiring and Cable Selection
Control Wiring and Menu Navigation
Start‑up and Operation
Fault and Warning Codes
Technical Data (Appendix A)

Specifications

Power Ratings	see Appendix A
Dimensions	see Appendix A
EMC Capability	see Appendix A

Frequently asked questions

Which terminals are live when the SVX9000 drive is connected to power?

Line terminals L1, L2, L3, motor terminals U, V, W, and the DC‑link/brake resistor terminals (-/+) are live when the drive is powered.
