Cutler-Hammer® MVX9000 sensorless vector adjustable frequency AC Drives from Eaton’s electrical business are designed to provide adjustable speed control of three-phase motors. These microprocessor-based, sensorless vector drives have standard features that can be programmed to tailor the drive’s performance to suit a wide variety of application requirements. The MVX9000 sensorless vector product line utilizes a 32-bit microprocessor and insulated gate bipolar transistors (IGBTs) which provide quiet motor operation, high motor efficiency and smooth low speed performance. The size and simplicity of the MVX9000 make it ideal for hassle free installation where size is a primary concern. Models rated at 480 volts, three-phase, 50/60 Hz are available in sizes ranging from 1 to 10 hp. Models rated at 240 volts, single- or three-phase, 50/60 Hz are available in sizes ranging from 1/2 to 7-1/2 hp. Models rated at 115 volts, single-phase, 50/60 Hz are available in the 1/4 to 1 hp size range.
The MVX9000 series from Eaton’s Cutler‑Hammer line are sensorless‑vector adjustable frequency drives designed for three‑phase motor speed control. They use a 32‑bit microprocessor and IGBT power devices to deliver quiet operation, high efficiency and smooth low‑speed performance.

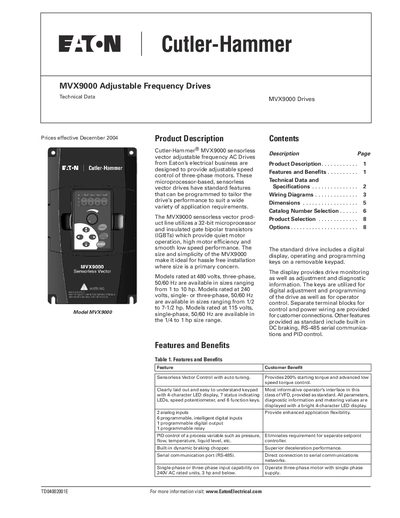

The document lists output ratings from 0.25 hp to 10 hp, a frequency range of 0.1‑400 Hz, overload capability of 150 % for 60 s, and a protected IP20 enclosure. It also details wiring diagrams, dimensions, catalog numbers, and optional accessories such as keypads and braking resistors.
| Frequency range | 0.1 Hz – 400 Hz |
|---|---|
| Overload rating | 150 % for 60 seconds |
| Efficiency | Typically greater than 95 % |
| Enclosure rating | IP20 (Protected chassis) |
| Digital inputs | 6 programmable digital inputs |
| Analog inputs | 2 inputs (0‑10 V DC, 4‑20 mA) |
| Digital outputs | 1 programmable open‑collector and 1 Form C relay |
The MVX9000 operates from 0.1 Hz up to 400 Hz.
It provides six programmable digital inputs.
The standard enclosure is a protected chassis with an IP20 rating.
It can handle an overload of 150 % for up to 60 seconds.
