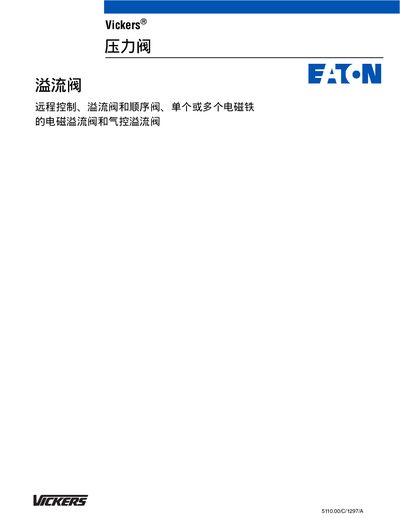

This manual introduces the features and characteristics of Vickers relief valves, solenoid relief valves and air-controlled relief valves, including models, interfaces, pressure ratings, etc.
This manual provides detailed information on Vickers CGE series pressure valves, including remote and manual control options, installation guidelines, and safety warnings. It describes the valve's adjustable pressure mechanism, filter maintenance, and recommended power supply.
Performance curves, flow‑rate tables, and dimensional data are included to aid in system design and troubleshooting. The document also lists application data, oil cleanliness requirements, and recommended sealing materials. This manual is written in Chinese.
| Minimum Pressure Rating | 70 bar (1000 psi) |
|---|---|
| Flow Rate (CGE‑06‑1‑28) | 5.2 USgpm |
| Power Supply Voltage | 115 V 60 Hz |
The manual recommends using the Vickers EMCS‑30 power supply.
Remove the inlet plug from the lead section, flip the button, and set the manual override pressure higher than the electrical control maximum.
Oil viscosity should be between 32 cSt and 49 cSt (150 °F to 225 °F).
