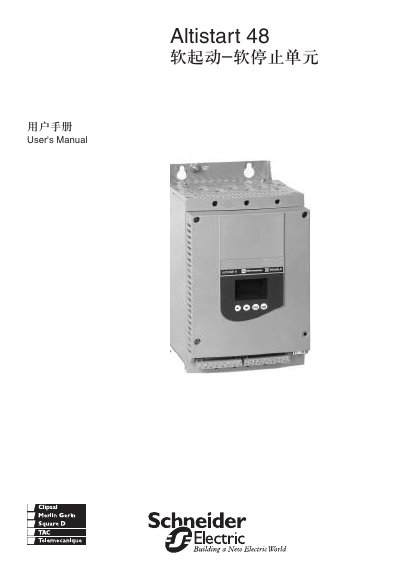

This document is the user manual for Altistart 48 starter, including installation and setup steps, factory configuration, technical specifications, operation recommendations, starter-motor combinations, installation suggestions, thermal protection, display components and programming, remote operation panel options, troubleshooting methods, etc.
This manual describes safe handling, installation steps, wiring, and initial configuration of the Altistart 48 soft starter. It includes safety warnings, required disconnection of control and power lines, and detailed wiring diagrams for both star and delta motor connections.
Technical specifications, factory default settings, menu navigation, advanced configuration, and troubleshooting procedures are also covered. The document lists environmental ratings, protection levels, temperature limits, and performance parameters such as limit current and acceleration ramp. This manual is written in Chinese.
| Degree of protection | IP20 for ATS 48D17, IP00 for ATS 48C14 |
|---|---|
| Operating temperature | -10 °C to +40 °C (up to +60 °C with derating) |
| Storage temperature | -25 °C to +70 °C |
| Maximum operating altitude | 1000 m (derate 0.5 % per additional 100 m) |
| Limit current (ILt) | 400 % of motor rated current |
| Acceleration ramp (ACC) | 15 seconds |
| Start torque (tq0) | 20 % of rated torque |
Both the control lines (CL1‑CL2) and the main power lines (L1‑L3) must be disconnected before wiring the starter.
The factory default limit current is set to 400 % of the motor’s rated current.
The starter provides a 10‑level motor protection scheme.
The ATS 48D17 version has an IP20 rating, while the ATS 48C14 version has an IP00 rating.
