ATV302 is a universal inverter suitable for three-phase asynchronous motors with a power range of 0.37 to 7.5 kW. The inverter has high reliability, compact structure, and complies with relevant standards. It is suitable for various application scenarios.
The ATV302 is a general‑purpose variable frequency drive for three‑phase cage‑type asynchronous motors ranging from 0.37 kW to 7.5 kW. It is designed for a wide variety of industrial applications such as textile, machine tools, printing, plastics, building materials, woodworking, and logistics equipment.

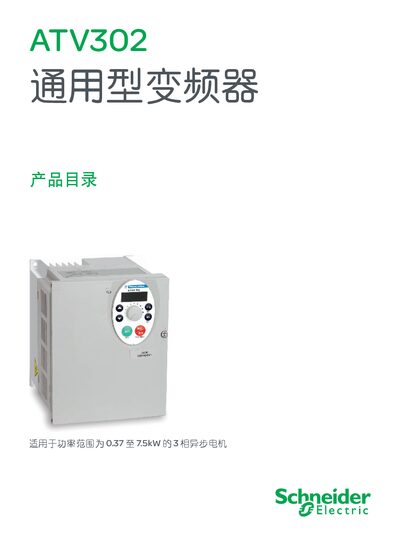

The manual details the drive’s hardware layout, wiring, installation steps, and operation. It lists technical data such as input voltage, output frequency range, switching frequency, environmental limits, and I/O configuration, and includes special application notes, safety information, and contact details for Schneider Electric China. This manual is written in Chinese.
| Motor power range | 0.37 – 7.5 kW |
|---|---|
| Operating ambient temperature | -10 °C to +50 °C |
| IP protection rating | IP31/IP41 (top), IP21/IP20 (terminals) |
| Logical inputs | 6 logical inputs, 3 analog inputs, 1 combined I/O, 2 relay outputs |
It supports three‑phase asynchronous motors from 0.37 kW up to 7.5 kW.
The ATV302 provides six programmable logical inputs, three analog inputs, one combined I/O, and two relay outputs.
