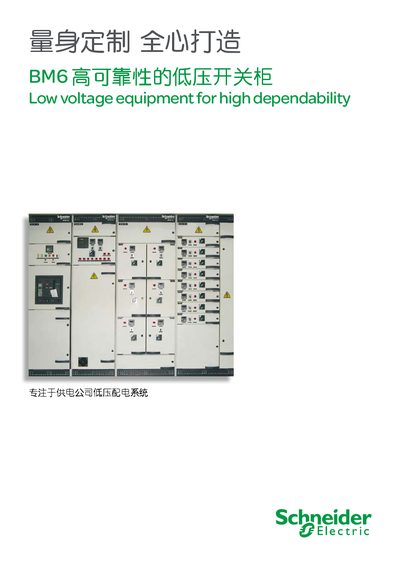

BM6 series low-voltage switchgear is a special cabinet developed by Schneider Electric for power supply companies' low-voltage distribution systems. The application field is mainly for residential quarters, small and medium-sized commercial buildings, urban network renovation and substations. BM6's design focuses on reliability, safety and convenience for operation and maintenance personnel, and fully considers personal and equipment safety.
The BM6 series low‑voltage switchgear cabinet is designed by Schneider Electric for power‑distribution networks in residential, commercial and sub‑station applications. It emphasizes reliability, safety and ease of maintenance with a fixed‑partition structure that isolates busbars and functional units, preventing fault arcs from spreading.
The cabinet integrates Schneider‑Electric‑approved components such as Masterpact MT/MTE/MTU incoming breakers, Compact NS/NSE/NSU feeder breakers, Varplus capacitors and Varlogic controllers. It meets IEC 60439‑1 and GB 7251.1 standards and provides features like a Chinese (and six other language) interface, event logging, and IP30/31/40 protection. This manual is written in Chinese.
| Rated voltage | 400 V AC |
|---|---|
| Rated insulation voltage | 1000 V AC |
| Main bus rated current | 3200 A |
| Short‑time withstand current | 50/65/85 kA (1 s) |
| IP protection level | IP30/31/40 |
| Height | 2200 mm |
| Width | 600 or 800 mm |
The main bus is rated for 3200 A.
It has an IP protection rating of IP30/31/40.
The rated insulation voltage is 1000 V AC.
