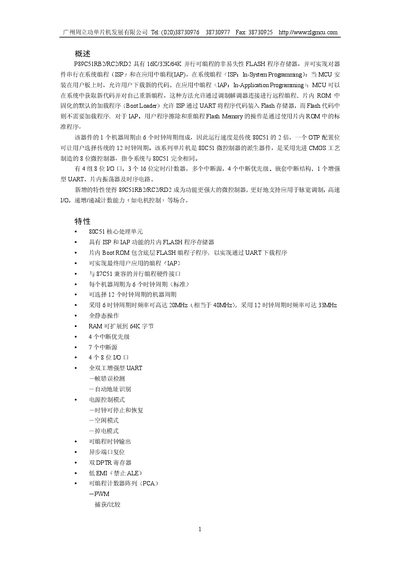

ZLG P89C51RB2/RC2/RD2 Flash Program Storage User Manual
This manual provides an overview of the P89C51RB2/RC2/RD2 8‑bit microcontroller, its 16 KB/32 KB/64 KB parallel programmable flash, ISP and IAP programming methods, and the built‑in boot ROM that enables UART‑based code loading. It also details the device architecture, including the 80C51 core, instruction set compatibility, and the extended peripheral set.
The document covers pin descriptions, memory organization, timer/counter operation, PCA modules, UART features, power‑saving modes (idle, power‑down), and security (programmable lock bits). Ordering information, package options (PDIP, PLCC, LQFP) and electrical characteristics are also included. This manual is written in Chinese.
ZLG P89C51 specifications
| Flash memory size | 4 KB – 32 KB |
|---|---|
| RAM size | 128 B – 8 KB |
| Maximum operating frequency | 33 MHz |
| Operating voltage | 5 V (0 °C – 70 °C) |
| I/O ports | 4 × 8‑bit ports (P0‑P3) |
| UART type | Full‑duplex enhanced UART |
| Timers | 3 × 16‑bit timers |
| Package types | PLCC44, DIP40, LQFP44 |
