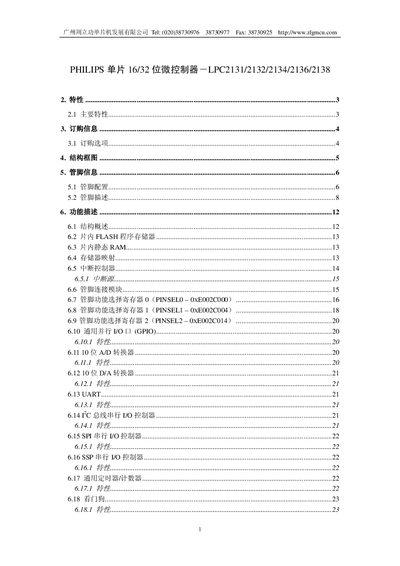

Philips LPC2131/2132/2134/2136/2138 Microcontroller Datasheet
This datasheet describes the Philips LPC2131, LPC2132, LPC2134, LPC2136 and LPC2138 microcontrollers. It includes an overview of the ARM7TDMI‑S CPU core, memory configurations, peripheral features, and electrical characteristics. Detailed pin configuration tables and functional block diagrams are provided for each device.
The document also lists ordering information, package dimensions (LQFP64, 10 × 10 × 14 mm), and a glossary of abbreviations. Revision history shows updates adding the LPC2134 and LPC2136 devices. This manual is written in Chinese.
ZLG LPC2131 specifications
| Flash memory | 32 kB – 512 kB |
|---|---|
| Static RAM | 8 kB – 32 kB |
| ADC channels | 1 or 2 × 10‑bit, up to 8 channels |
| DAC channels | 1 × 10‑bit |
| PWM outputs | 6 channels |
| GPIO pins | up to 47 |
| External interrupt pins | up to 9 |
| Maximum CPU frequency | 60 MHz |
| Operating voltage | 3.0 V – 3.6 V |
Source: Philips LPC2131/2132/2134/2136/2138 Microcontroller Datasheet
All ZLG LPC2131 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does the LPC2134 have an AD1 function?
No, the LPC2134 does not include the AD1 function.
From: Philips LPC2131/2132/2134/2136/2138 Microcontroller Datasheet
What is the flash memory size of the LPC2138?
The LPC2138 provides 512 kB of embedded flash memory.
From: Philips LPC2131/2132/2134/2136/2138 Microcontroller Datasheet
